4mA 20mA 0.5V 4.5V Hydraulic Pressure Transducer Explosion Proof

Brand Name : WNK

Model Number : WNK80mA

Certification : CE, ROHS

Place of Origin : Anhui, China

MOQ : 1

Price : $12.00 - $19.00/Pieces

Supply Ability : 2000 Piece/Pieces per Week Steam Pressure Sensor/ Air Pressure Sensor

Packaging Details : each product in one inner paper box with protection;

Warranty : 1 YEAR

Customized support : OEM, ODM

Measured media : liquid, gas and steam

Output signals : 4-20mA, 1-5V, 0-10V, 0.5V-4.5V, I2C

Accuracy : 0.2%F.S, 0.5%F.S

Pressure range : 0-300KPa~10MPa

Protection class : IP65

Ex-proof : ExiaII CT4/CT6, ExidIICT6

Housing material : 304SST

Power Supply : 24VDC/12VDC/5VDC/3.3V

Electrical connection : Packard, M12, DIN43650, Cable

Keywords : Pressure Sensor/ Air Pressure Sensor

Port : Shanghai port

Contact Now

Ex-proof 4-20mA Lost Cost 0.5-4.5V Hydraulic Pressure Transducer

Product Description

WNK has 17-year experience of research, development, production and sales of sensors. With the concept of smart water management system, smart fire control, sponge city, smart city, and internet of things, WNK quickly seizes opportunities to develop low cost, low power, small size, with temperature measurement function ceramic capacitive pressure sensor.

After two years of research, development and repeatedly testings, our ceramic capacitive sensors have entered big quantity production stage. For different applications and installation methods, we offer OEM, ODM and customization services.

Our sensor outputs including 4~20mA, SPI, I²C, 0.2~2.9V, 1~5V, 0~5V, 0.5~4.5V, 0~10v and etc. And OEM, ODM & customization service are available for this product.

>> Quick information

1. Temperature range: -20 to 85℃

2. Wide operation temperature range -40~125℃

3. High performance ceramic capacitive pressure sensor

4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available

5. Small dimensions, dimension customizble

6. Optional packard, M12, Small Hirschman connectors

7. OEM, ODM, customization service available

8. Process connector: G1/4, M12*1.5, 1/4NPT, 7/16-20UNF female

Technical Parameters

4mA 20mA 0.5V 4.5V Hydraulic Pressure Transducer Explosion Proof

>> Dimensions

4mA 20mA 0.5V 4.5V Hydraulic Pressure Transducer Explosion Proof

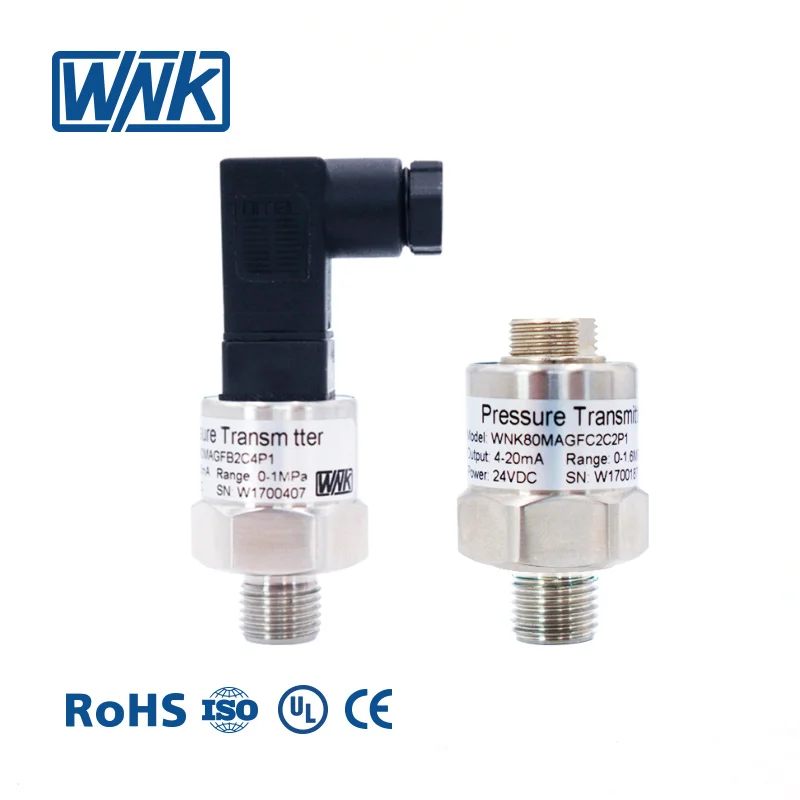

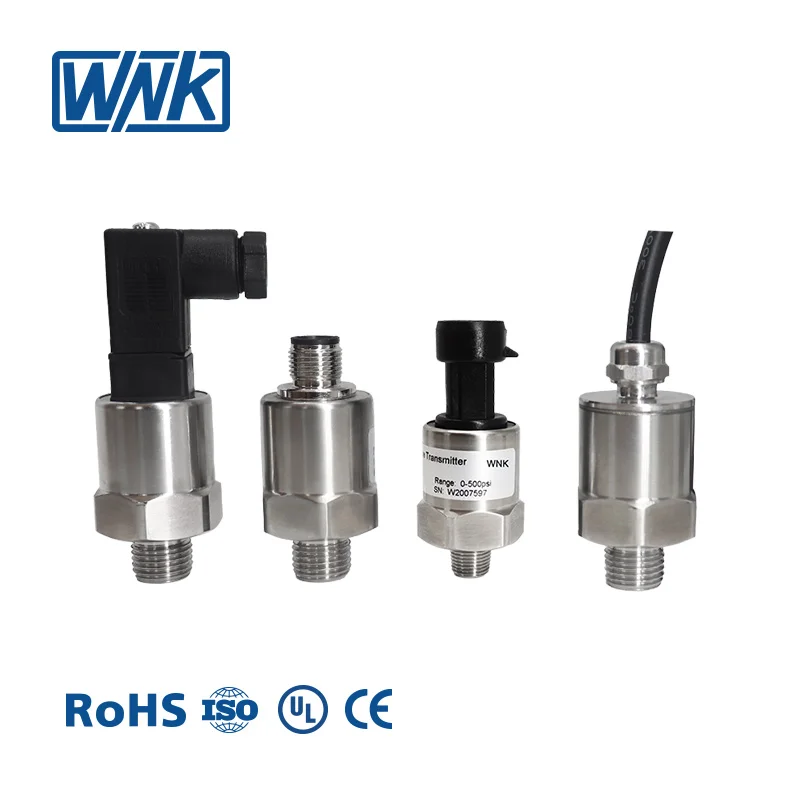

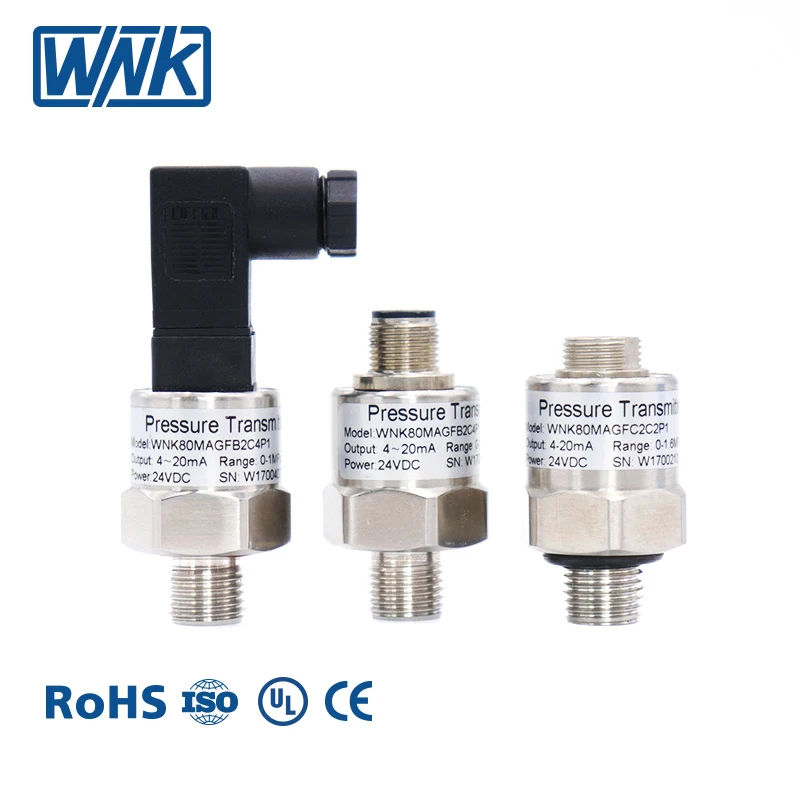

Product Show

4mA 20mA 0.5V 4.5V Hydraulic Pressure Transducer Explosion Proof

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
